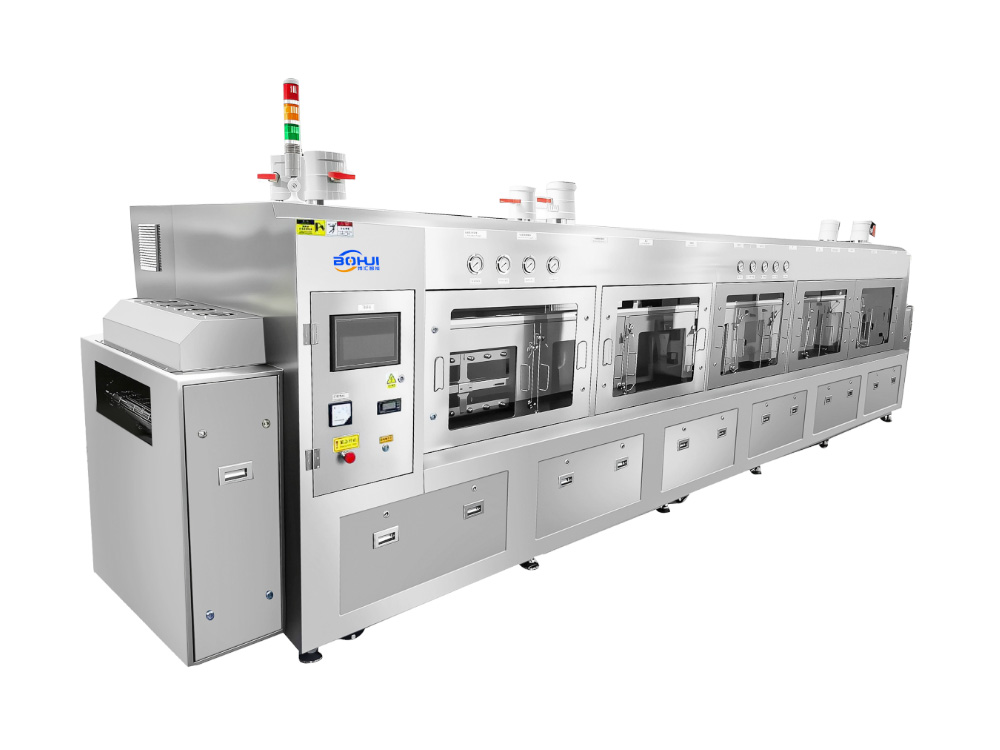

Cleaning object:Online cleaning of residual organic/inorganic pollutants such as rosin flux and non cleaning flux on the surface of PCBA after SMT patching and THT plug-in process soldering.
Equipment features:
1. Suitable for large-scale ultra precision centralized cleaning of PCBA, balancing cleaning efficiency and effectiveness;
2. High flow online spray cleaning method efficiently removes residual solder flux and other dirt from solder pads and bottom gaps;
3. Equipped with DI water resistance monitoring system, optional concentration real-time monitoring instrument;
4. Equipped with a chemical condensation recovery system, significantly reducing the consumption of cleaning agents and lowering usage costs;
5. The whole machine is made of corrosion-resistant SUS304 material, which can adapt to alkaline cleaning agents;
6. PLC control system, graphical operation interface in Chinese/English, easy to set, change, store and call programs.
Entering the board → Entering the board isolation → Chemical pre cleaning → Chemical cleaning 1 → Chemical cleaning 2 → Chemical isolation → Wind cut isolation → DI water pre rinsing → DI water rinsing 1 → DI water rinsing 2 → Final rinsing → Isolation → Section 1 high-pressure cold air → Section 2 high-pressure hot air → Section 3 high-pressure hot air → Exiting the board
| Mesh belt width | 600mm customizable large size |
| cleaning speed | 0-1500mm/min adjustable |
| Device dimensions | L7000*W1700*H1650（mm） |
| power supply | 380V 50Hz |
| Total power | Approximately 125KW |
| Equipment weight | About 3500kg |
